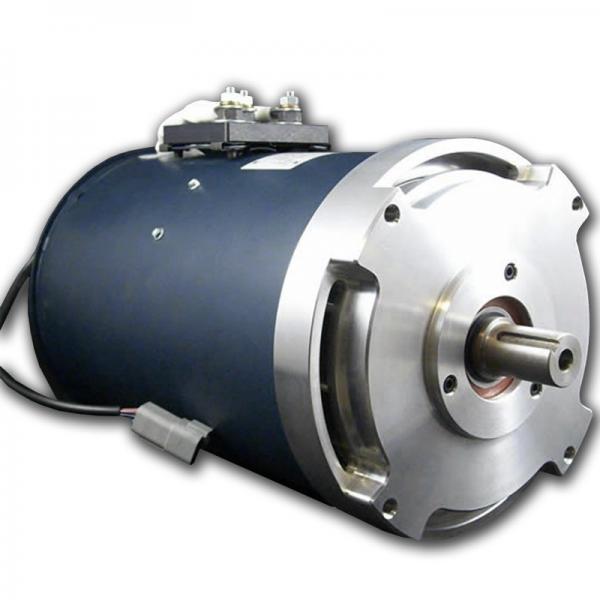

HPEVS AC-35 Brushless AC Motor Kit - 144V with Curtis 1239e-8521 Controller
NON-STOCKED ITEM - MANUFACTURED UPON ORDER - ETA 6-8 WEEKS
PRODUCT DETAILS

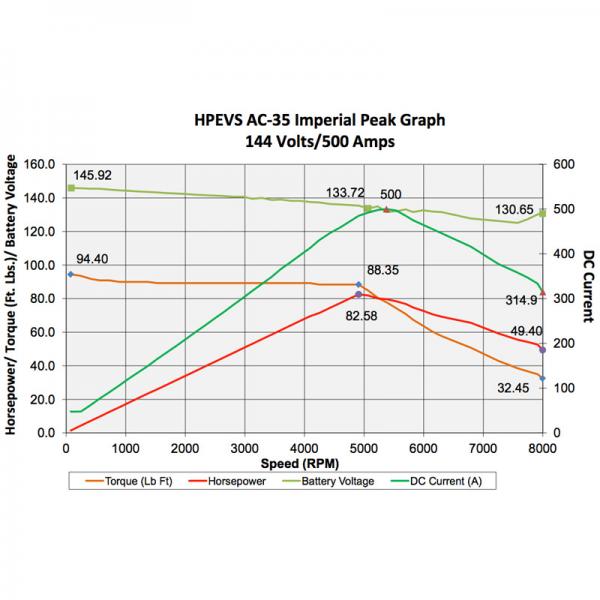

The AC35 is an AC motor that operates at 120-164V. It can draw up to 500A producing a peak of 82 HP (61 kW) and 94 ft-lbs (128 Nm) of torque out to 5,000 RPM. This kit works very well in a medium sized cars and lightweight vehicles. Features regenerative braking and idle function as well. At a modest 144 controller volts it makes a safer low voltage system that will give you lots of reliable EV miles.
Its right for you if:
You have a medium sized car or lightweight vehicle you want to convert to electric on a budget.
The tech you get:
- HPEVS AC-35 Motor
- Curtis 1239e-8521 Controller
- 35 Pin Connector and Wire Harness
- Gigavac GV200-MA Contactor
- 12 Volt HV Relay
- Precharge Resistor
- Curtis 840 Dash Gauge
- SPST Menu Button
- SPST Mode Switch
The final word:
A practical and safe medium sized project power plant.

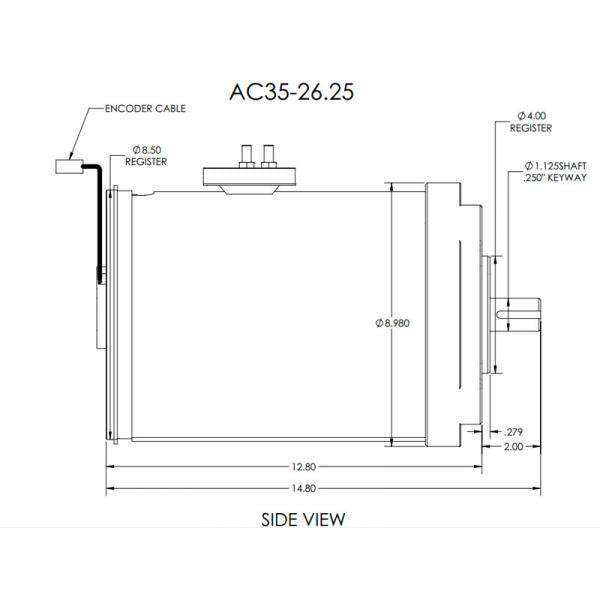

Specifications
- Motor Face: B-Face
- Motor Diameter: 8.980 Inches
- Motor Case Length: 12.8 Inches
- Motor Shaft Length End to End: 17.5 Inches
- Motor Type: AC Induction
- Brushes: No
- Interpoles: No
- Weight: 52 Kg (115 lbs)
- Max Voltage Input: 164
- Terminal Stud Size: 3/8 Inch
- Integrated Sensors: Encoder
- Rated Torque: 94 Lb Ft
- Rated Power: 82 HP
- Continuos RPM: 5,000
- Max RPM: 10,000
- RPM Sensor: No

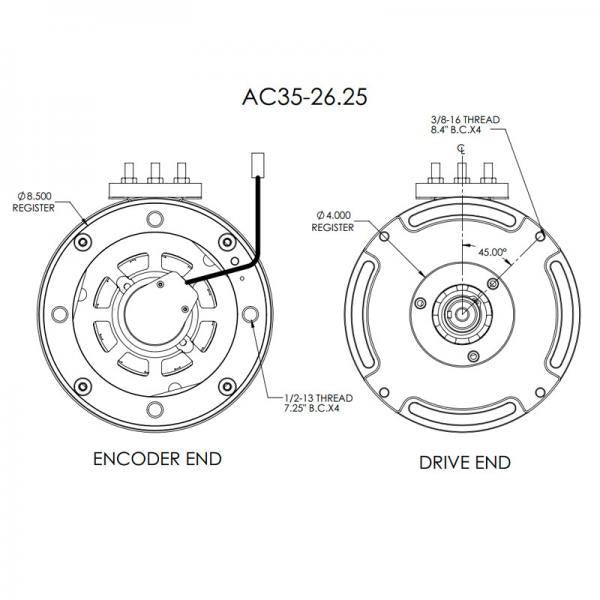

- Drive End Shaft: 1 1/8 Inch With 1/4 Inch Keyway
- Acc/Commutator End Shaft: Optional 7/8 Inch With 3/16 Keyway
- Timing: N/A
- Max Efficiency: 88%
- Thermal Cooling: Internal Fan
- Max Temperature: 180 Degrees Celsius (356 Degrees Fahrenheit)
- Matching Controller Included In Price: Curtis Controller 1238e-7621
